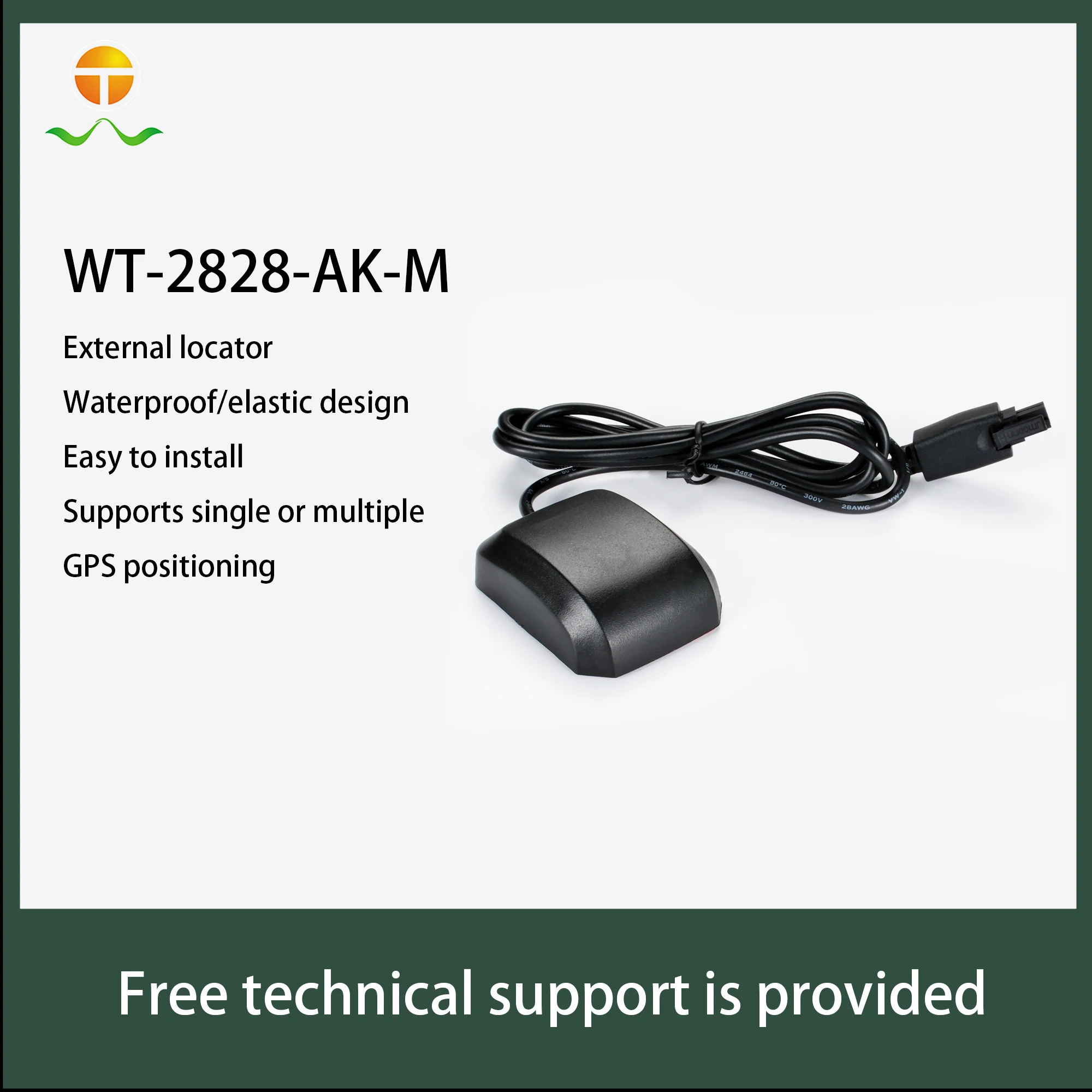

Molex Connector UART TTL GPS Receiver Antenna G-Mouse For Outdoor Use

Brand Name : OTW

Model Number : WT-2828-AK-TTL-M-2M

Place of Origin : China

MOQ : 10pcs

Price : US $4.1 - 15/

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Application : Positioning, surveying and mapping, etc

Type : GNSS Receiver

Country of Origin : CHINA

Brand : OTW

NMEA messages : RMC,VTG,GGA,GSA,GSV,GLL

Voltage : 3.0V to 5.0V

Power consumption : 25 mA @3.3V

Contact Now

Molex Connector UART TTL GPS Receiver Antenna G-Mouse For Outdoor Use

Product descriptions from the supplier

Overview

Molex Connector UART TTL GPS Receiver Antenna G-Mouse For Outdoor Use

Application:

● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.

Features:

● External positioning module and antenna integrated
● Elastic design with waterproof function
● Easy to install
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● Ultra-high sensitivity, high performance, low power consumption

Pin No.	Pin name	I/O	Description	Remark
1	RXD	I	UART Serial Data Input
2	GND	G	Ground
3	TXD	O	UART Serial Data Output
4	VCC	I	Power Supply	Voltage range 3.0V~5.0V

Product performance
Chip	WT-2828-AK-TTL-M-2M
Receiver type	GPS/QZSS L1 GLONASS L1 BeiDou B1
Agreement	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	56
Sensitivity	Tracking: -162dbm Capture: -148dbm Cold start -148dbm
Cold start	Average 29seconds
Hot start	Average 1 seconds
Accuracy	Horizontal accuracy 2.5m CEP, Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
18Max Height	18000 M
Max Speed	500 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Positioning mode	A-GNSS
Communication type	TTL level
Antenna	Built-in ceramic antenna
Connector
Connector type	Molex connector
Physical property
Type	4 Pin
Size	38mm49mm16mm (+/- 0.5mm)
Wire length	2m (customizable)
Fixed mode	3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage	3V~5V
Power Consume	25mA@3.3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
