17mA 3.0V RTK GNSS Module For Car Navigation / Traffic Recorder oem gps module

Product Categories

Shenzhen Anzewei Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OTW

Model Number : WT-62-UB

Place of Origin : China

MOQ : 10pcs

Price : US $2.4 - 11.80/

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Type : GNSS Module

Country of Origin : CHINA

Operating mode : GPS+GLONASS

Output Mode : UART+TTL+R232

NMEA messages : RMC,VTG,GGA,GSA,GSV,GLL

Voltage : 1.65V to 3.6V

Power consumption : 17mA @3.0V

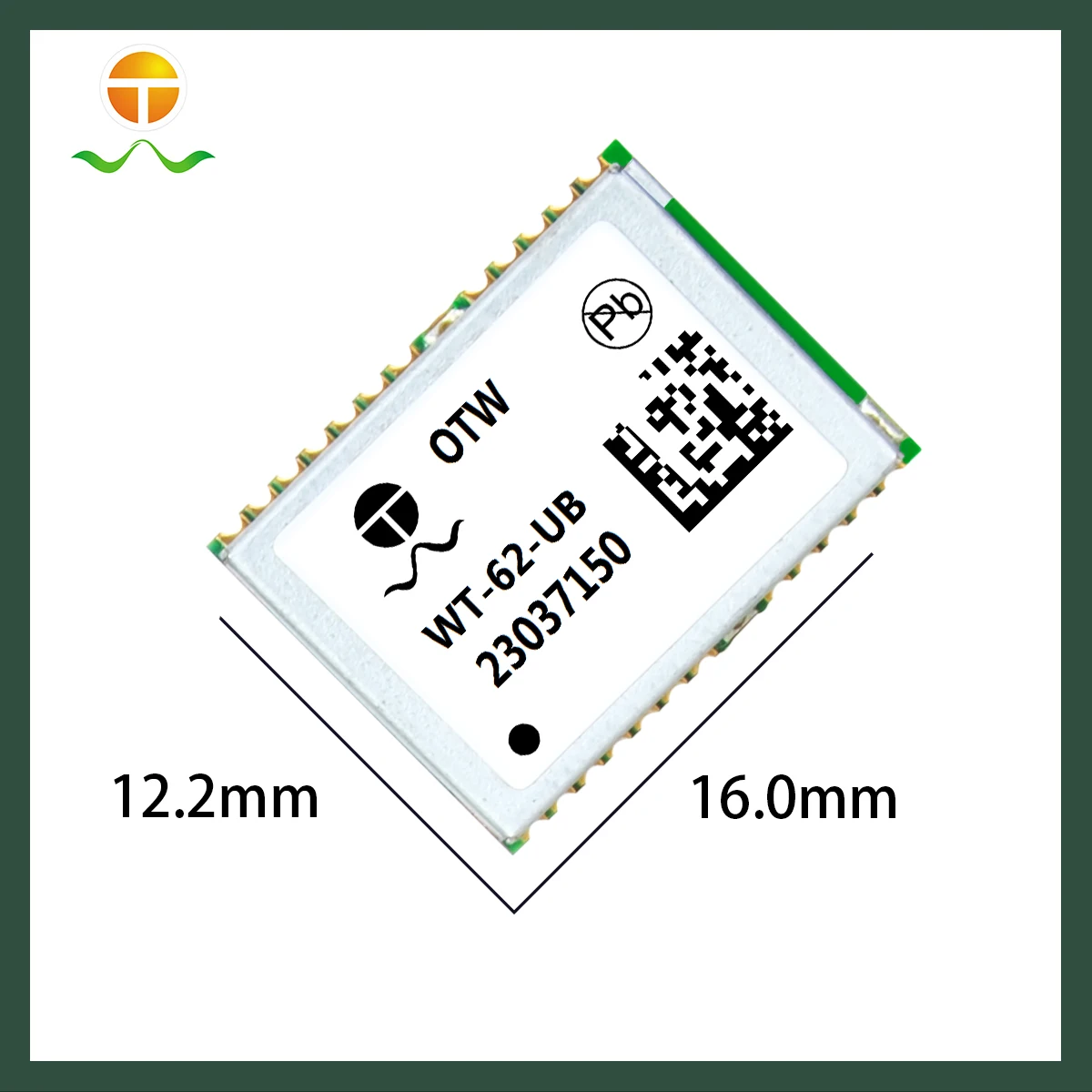

Size : 12.2mm*16mm*2.4mm

Contact Now

The Tracker Uses A Gps Module To Locate The Electric Vehicle In Real Time

Product descriptions from the supplier

Application:

●Car navigation, traffic recorder ●Drones, law enforcement cameras ●Hd camera, surveying and mapping ●Handheld device ●Smart wear ●Smart agriculture

Features:

●Supports GPS/QZSS,GLONASS ●Combines low power consumption and high sensitivity ●Strong anti-interference ability

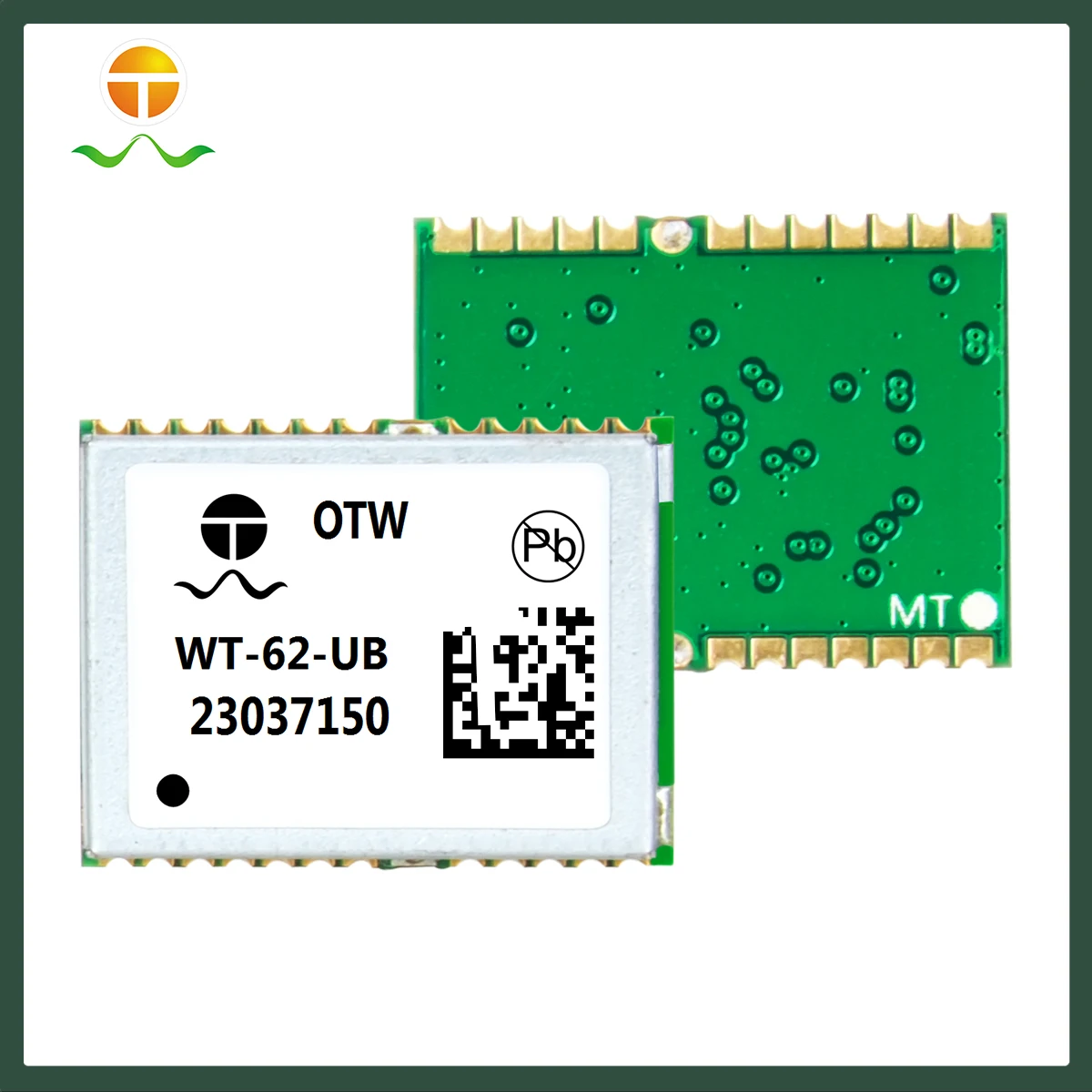

Bottom view

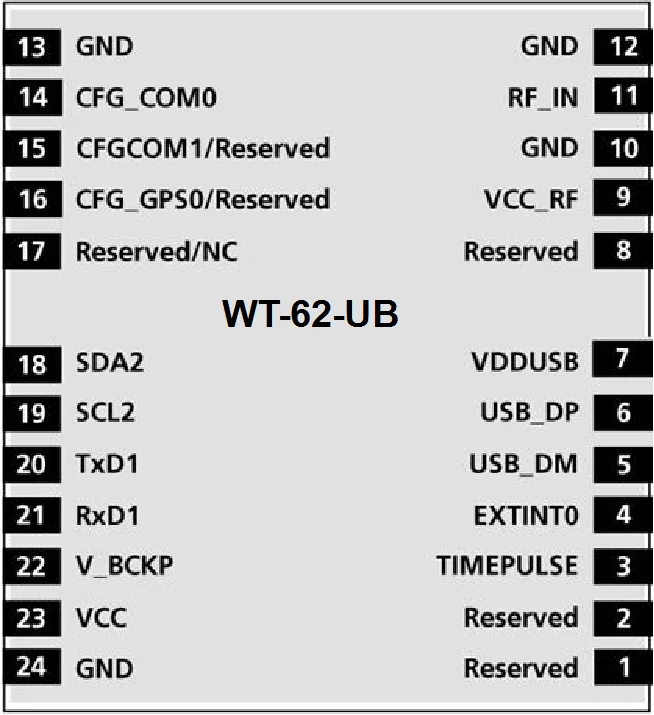

Module pin allocation

Module performance
Chip	WT-62-UB
Receiver type	GPS/QZSS L1 C/A GLONASS L1
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	56
Sensitivity	Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 29seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.5m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Port
Port	2 URAT 1 I2C 2 SPI
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	1.65V~3.6V
Power Consume	Operation mode: 17mA@3V, power saving mode: 5mA@3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
